Wire Mesh Storage Lockers
This is the locker Alliance is known for. We've been making them for decades, and by now we're building and installing tens of thousands a year across BC.

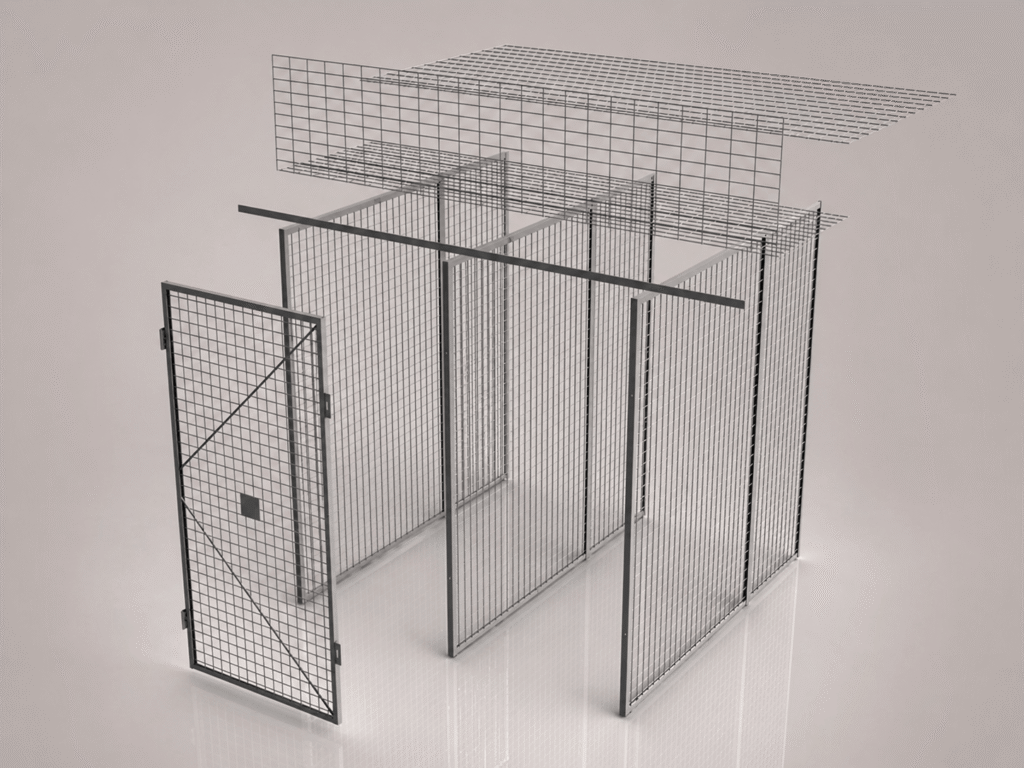

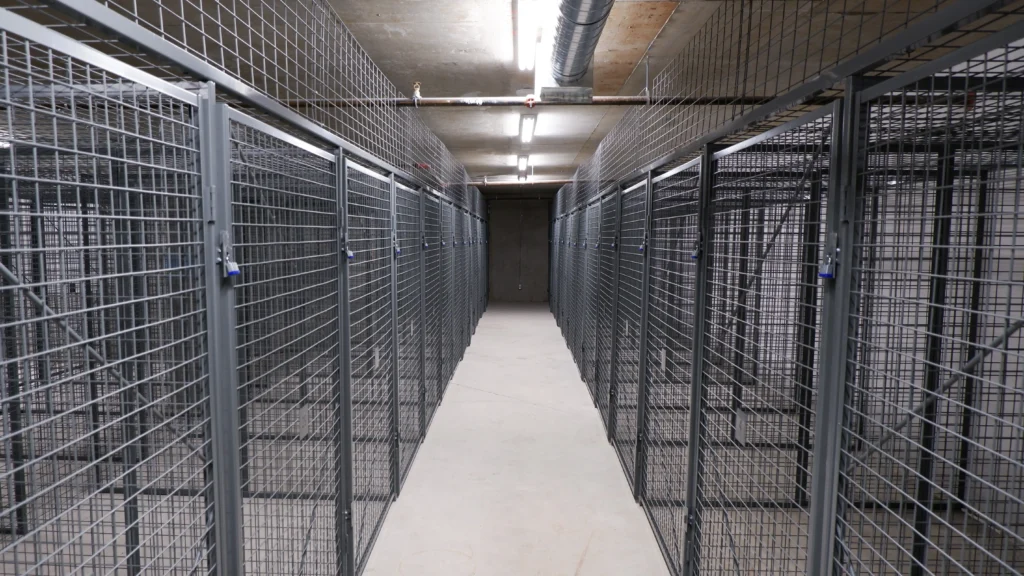

Built for high-traffic residential parkades, our standard locker is welded wire mesh on all four sides plus the top, framed in steel angle, with a two-hasp door that holds up to daily use across a building's full lifespan.
Email us directly: connect@allianceinstallations.ca
Sizing

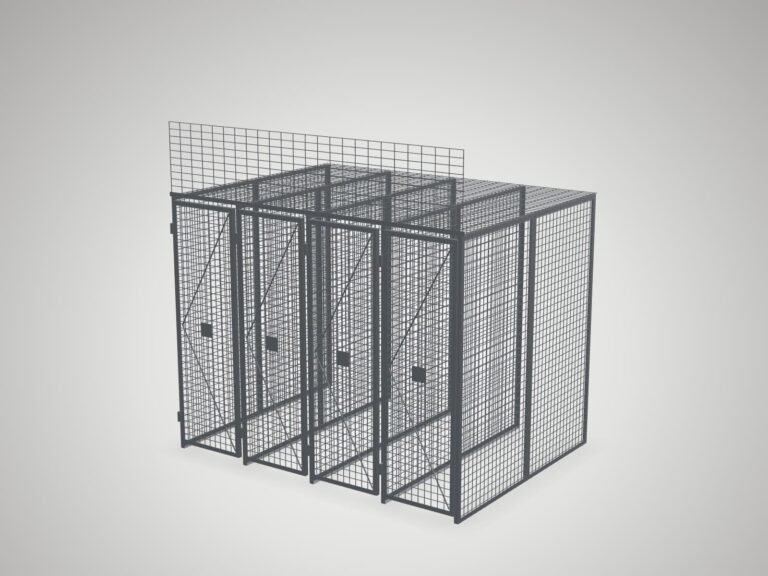

The standard footprint is 48" W × 72" D, with a 75" locker height (96" including optional vertical transom mesh). We manufacture to suit your room layout. Custom widths, depths, and heights are part of what we do every day, and lockers can be arranged in rows against a wall, in back-to-back banks, or as free-standing units.
Doors

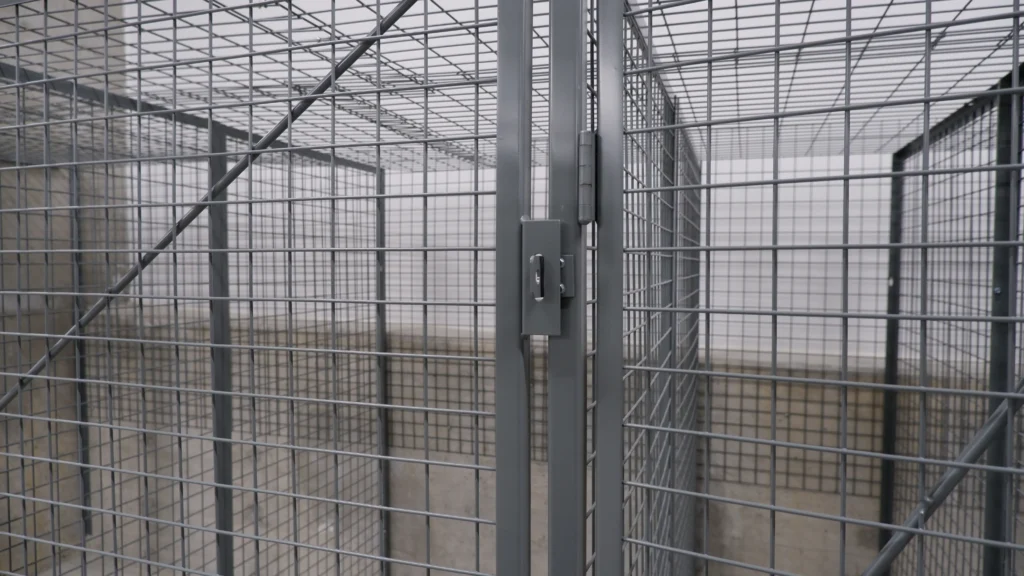

Each door includes two 1/8" × 1 1/2" lock hasps, dual-lock capable for added security. Heavy-duty steel hinges keep doors operating smoothly under daily use, and a 4" × 4" metal plate on each door accepts a locker number for tenant identification.
Ceiling & Transom

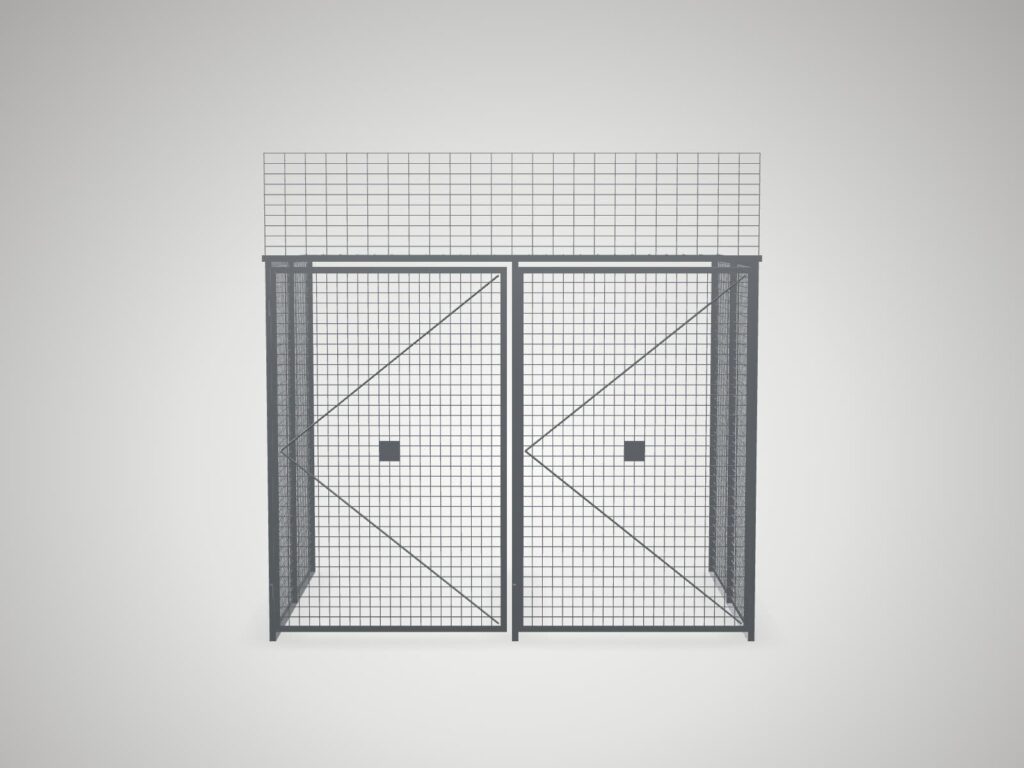

Standard units include 2" × 4" wire mesh top coverage. Many municipalities and fire departments request 20" of additional vertical transom mesh above the locker, which we include as standard, bringing total unit height to 96" (8 feet). This keeps residents from stacking items above the locker in a way that could interfere with sprinkler coverage, and helps projects meet local bylaw and fire code requirements.
Materials & Finish
Lockers are built from 10-gauge wire mesh and finished with a standard grey powder coat, applied in-house at our Richmond facility. Custom colours are available on request.
Installation & Lead Time
Our crews handle on-site installation, coordinating with your team to fit the construction schedule. We deliver material on skids, which keeps the install compartmentalized and avoids cluttering parkade space with product that isn't going in yet. Deliveries typically block road access for under 10 minutes.
As a local manufacturer with our own production line, we typically go from PO to delivery in 2-4 weeks. If a layout changes mid-project, we can adjust, produce the updated kit, and deliver within the same week.
Warranty
Every locker is backed by a 24-month limited warranty covering manufacturing and installation defects.
Specifications

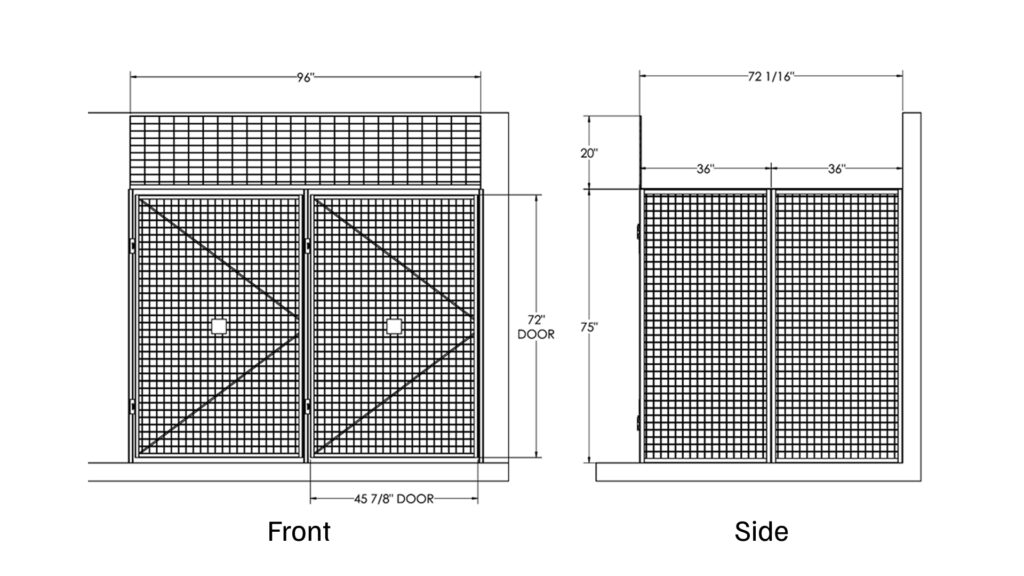

Technical Drawings
Click any drawing to view full size. All drawings remain property of Alliance Installations and may not be copied, modified or reproduced without the express written permission of Alliance Installations.

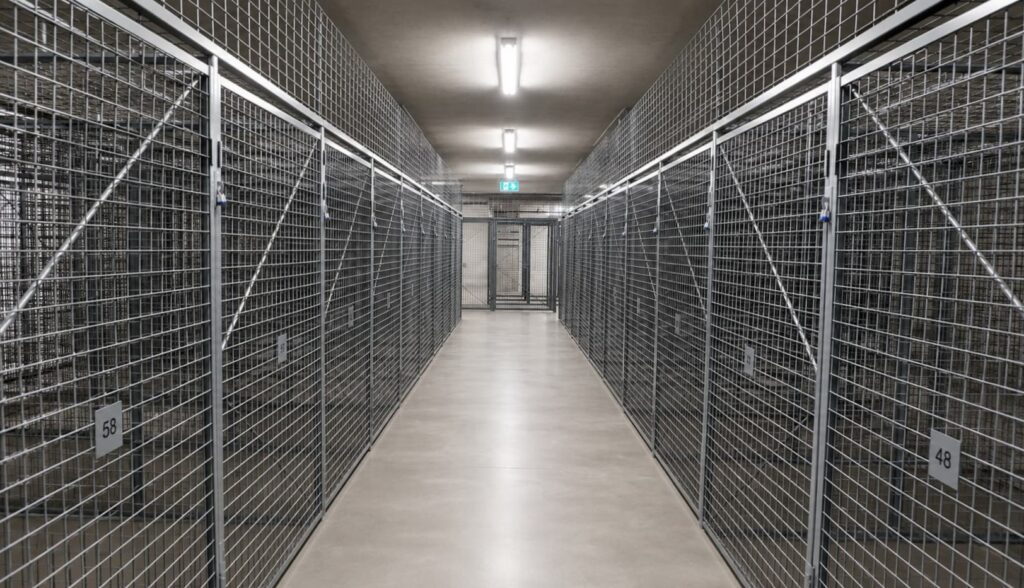

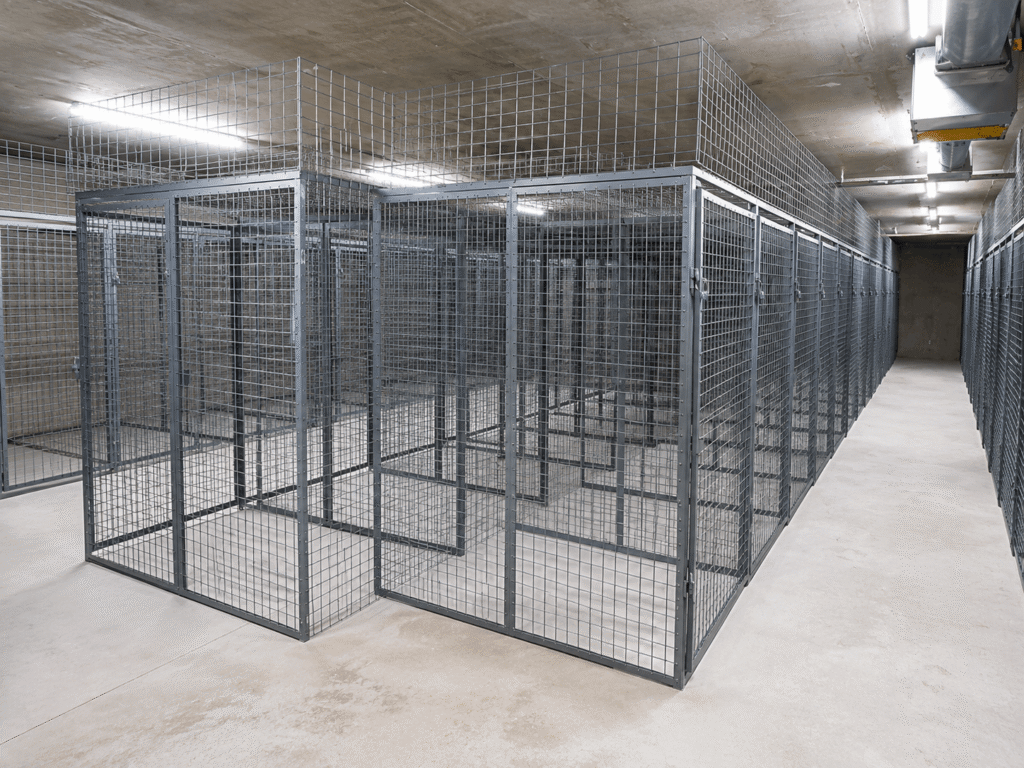

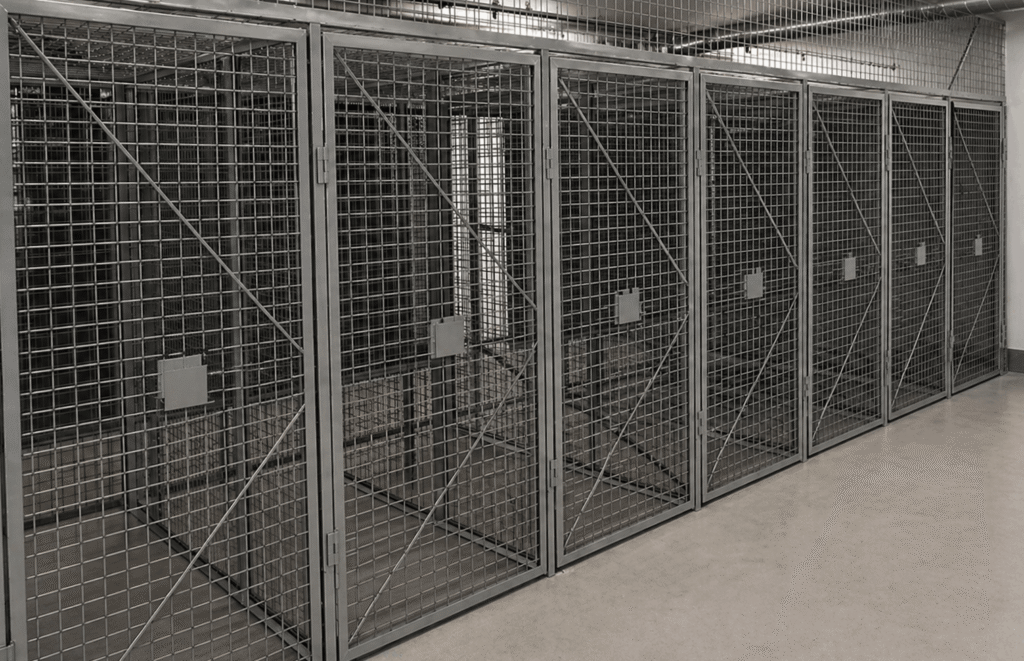

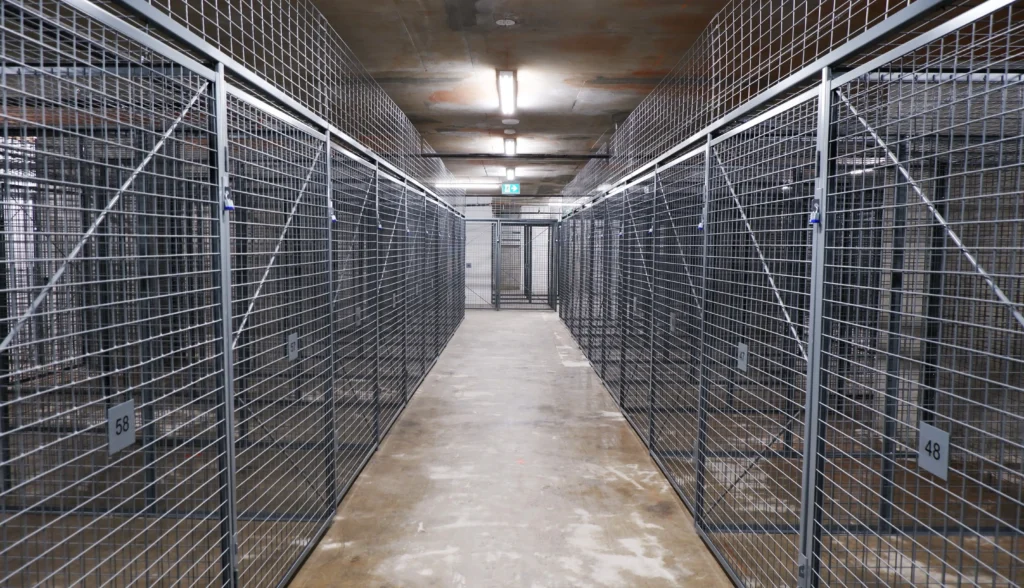

Gallery
Start your next project.
Send us your drawings and we'll respond with a scope and price.

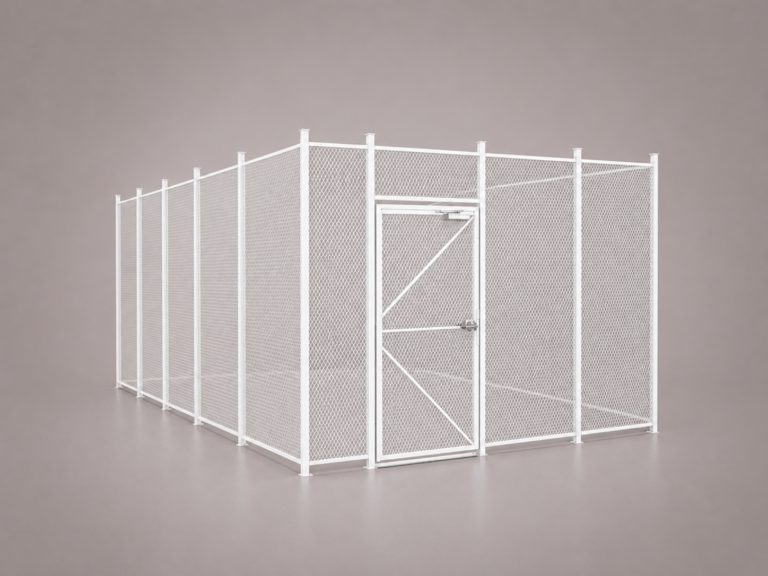

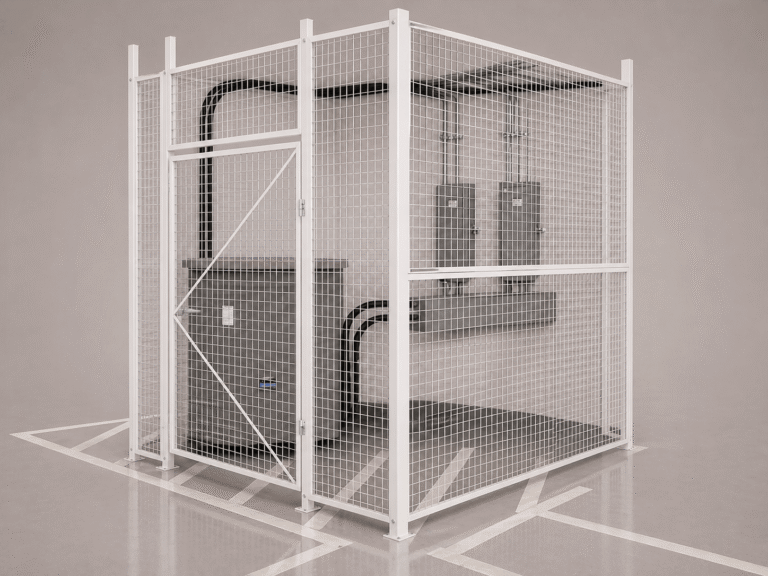

Related Products
